Davinci RHYTHM2 PPG
The RHYTHM2 is an easy-going EN/LTF A glider that is suitable for the training of paragliding. The main focus of the design is on safety and maximum forgiveness in handling, but with an eye to handling and performance.
The RHYTHM2 is perfectly suited for beginner pilots looking for a glider with maximum safety. Long brake travel and excellent passive safety, as well as good stability, make the good ideal for progression. The RHYTHM2 sits well within the limits of the LTF/EN-A class as proven by the certification test results in all maneuvers.
The RHYTHM2 has our trademark technology SN+(Smart Nose Plus) and SBS(Smart balance System) so that it offers better safe and stable characteristics in take-off, air, and landing for your student and beginner.
- Smart Nose Plus gives you a more relaxed response time in important moments
- Smar Ballance System offers a more automatic safe posture during take-off and flight
- Many balanced lines construction with the newly designed profile
- Better durability and strength fabric (Myungjin TEX)
- Easy inflation and smoother take-off

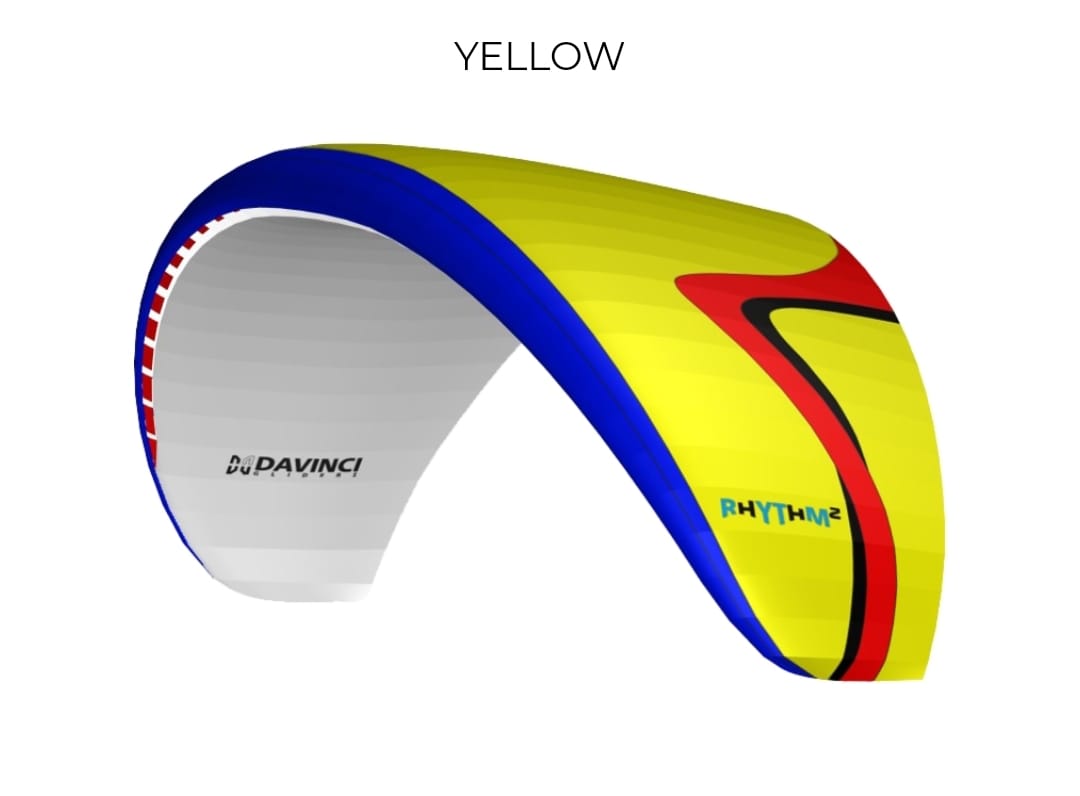

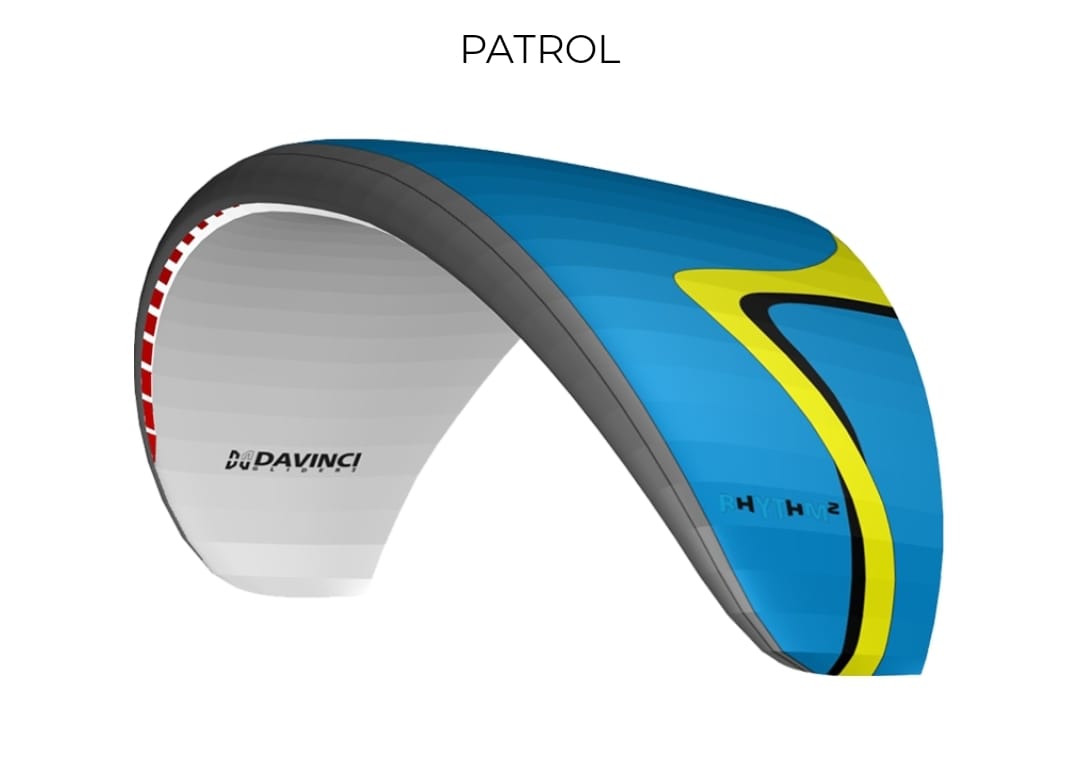

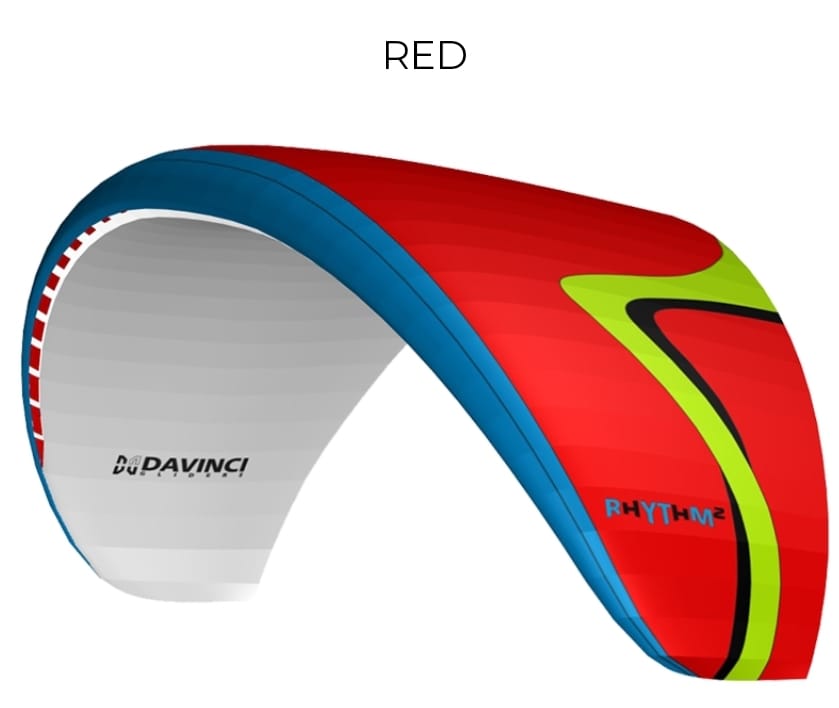

- 5 sizes covering 50 to 120KG in 3 colors
TECHNICAL DATA
| Size | XXS | XS | S | M | L |
| Flat area, sq.m | 21.2 | 23.0 | 25.0 | 27.0 | 29.5 |
| Flat A.R. | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 |
| Flat span, m | 10.1 | 10.5 | 11 | 11.4 | 11.9 |
| Projected area, sq.m | 18.3 | 19.8 | 21.6 | 23.3 | 25.4 |
| Projected A.R. | 3.61 | 3.61 | 3.61 | 3.61 | 3.61 |
| Projected span, m | 8.1 | 8.5 | 8.9 | 9.2 | 9.6 |
| Cells, total | 38 | 38 | 38 | 38 | 38 |
| Cells, closed | 8 | 8 | 8 | 8 | 8 |
| Flattening, % | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 |
| Cord max, m | 2.58 | 2.69 | 2.81 | 2.92 | 3.61 |
| Cord average, m | 2.10 | 2.19 | 2.28 | 2.37 | 2.48 |
| Lines height, m | 6.25 | 6.51 | 6.78 | 7.05 | 7.37 |
| Lines scheme | A,A'/B/C | A,A'/B/C | A,A'/B/C | A,A'/B/C | A,A'/B/C |
| Accelerator travel, mm | 100 | 100 | 120 | 120 | 120 |
| Glider weight, kg | 3.88 | 4.18 | 4.44 | 4.76 | 5.02 |
| Takeoff weight, kg | 50-75 | 60-85 | 70-95 | 80-105 | 95-120 |
| PPG takeoff weight, kg | 50-120 | 55-120 | 70-135 | 80-140 | 95-155 |
| Certification | EN A / DGAC | EN A / DGAC | EN A / DGAC | EN A / DGAC | EN A / DGAC |
MATERIALS
| Upper surface leading edge | MYUNGJIN TEXTILE | MJ40 MF |
| Upper surface except leading edge | MYUNGJIN TEXTILE | MJ40 MF |
| Bottom surface | MYUNGJIN TEXTILE | MJ40 MF |
| Ribs, supported | MYUNGJIN TEXTILE | MJ38 HF / MJ32 HF |
| Ribs, unsupported | MYUNGJIN TEXTILE | MJ38 HF / MJ32 HF |
| Diagonal ribs | MYUNGJIN TEXTILE | MJ32 HF |
| Lines, upper cascades | DAVINCI | TNL 80 |
| Lines, middle cascades | DAVINCI | TNL180/145 |
| Lines, main (lower) cascades | DAVINCI | TNL 280/220/180 |
| Lines, upper stabilo cascade | DAVINCI | TNL 180 |
| Lines, middle stabilo cascade | DAVINCI | TNL 80 |
| Lines, main (lower) stabilo cascade | DAVINCI | TNL 145 |
| Lines, upper brake cascade | DAVINCI | TNL 80 |
| Lines, middle brake cascade | DAVINCI | TNL 145 |
| Lines, main (lower) brake cascade | DAVINCI | TNL 400 |
| Risers, webbing | GUTH&WOLF GMBH | WEBBING 20MM |
| Risers, pulleys | LW RILEY PTY LTD | RIELY |
